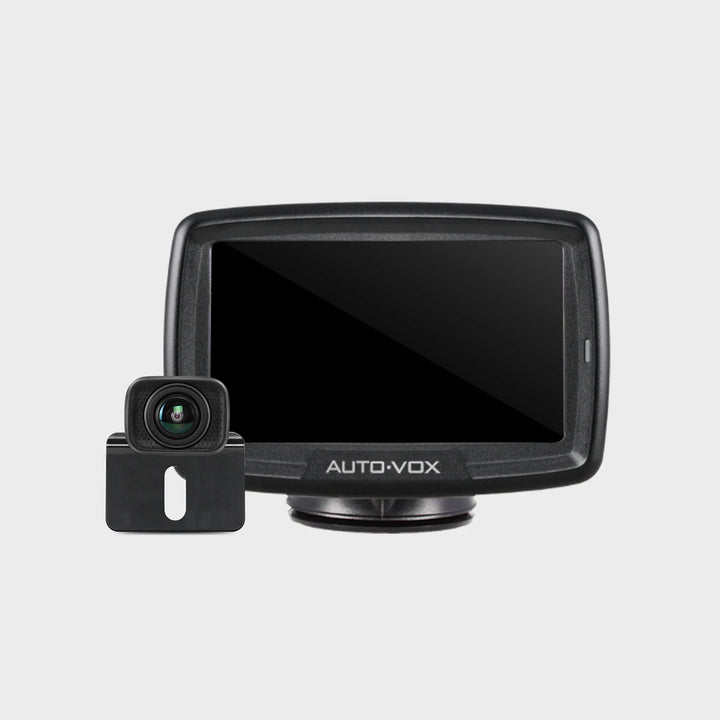

Device designation: Backup camera kit CS-2
Operating temperature: -20℃ to +65℃
Storage temperature: -30℃ to +80℃
Transmission range: max. 100 meters in open range

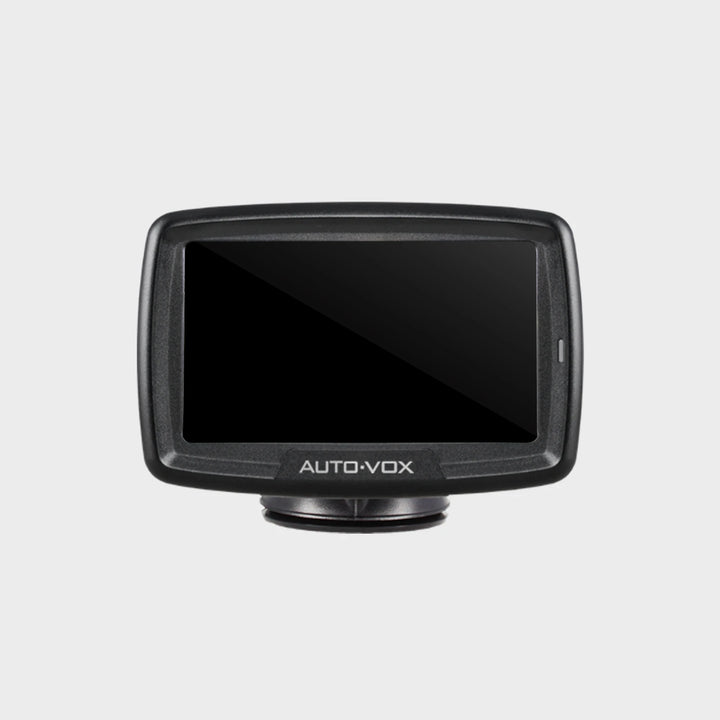

Monitor:
Diagonal screen size: 4.3”/10.9 cm
Resolution: 480 x 272 pixel
Dimensions: approx. 120x80x20 mm(l * w *h mm)
Technology: LCD color display
Power supply: 12V-24V(volt) direct current

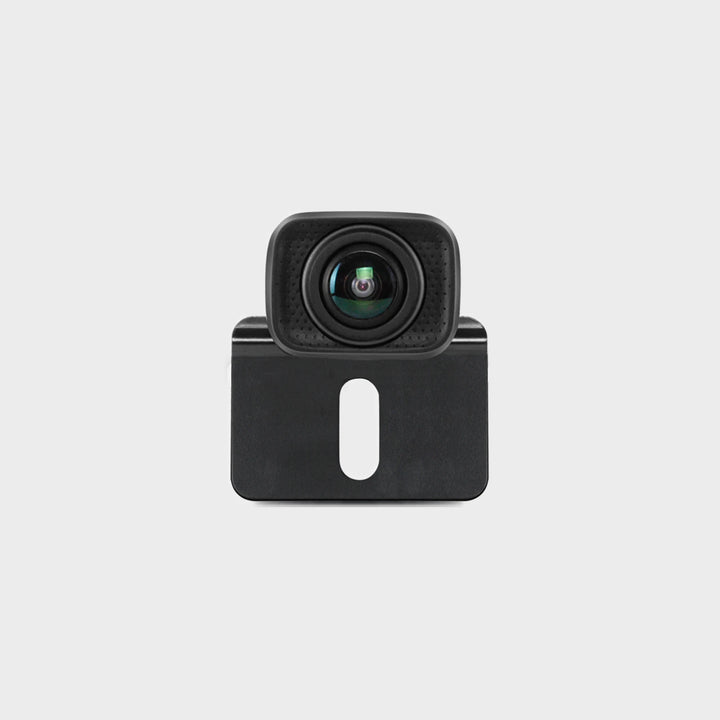

Camera:
Resolution: 480 x 272 pixel
View angle: 110°
Color sensor: 1/3 inch color Cmos Senser, 5 glass lens
Exposure: automatic
White fader: automatic
Camera tilt: Variable adjustment angle to approx. 30°
Power supply: 12V-24V(Volt) direct current
IP Class(Protection type): IP68, waterproof
Minimum illumination: 0.1Lux
FAQ
A: Dear Customer,
The capacity of the battery is 3350mAh, and the battery can be charged to use, there is no need to replace, kindly noted
A: Dear Customer,
The rear camera comes with the built-in transmitter, there is no need to purchase other parts, kindly noted.
A: Dear Customer,
If you want to charger the battery, you should expose the solar panel to sunlight. if you parked indoor, it can't be charged.
A: Dear Customer,
Yes, it can fit your car, kindly noted.
A: Dear customer,
You can adjust the line on the Menu stating, there are 6 parking lines for your selection, kindly noted.
